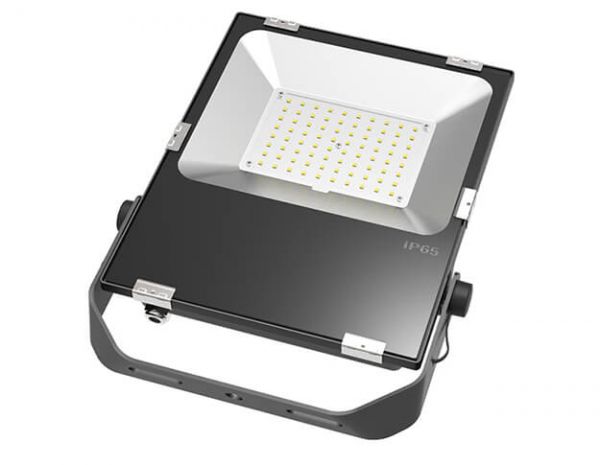

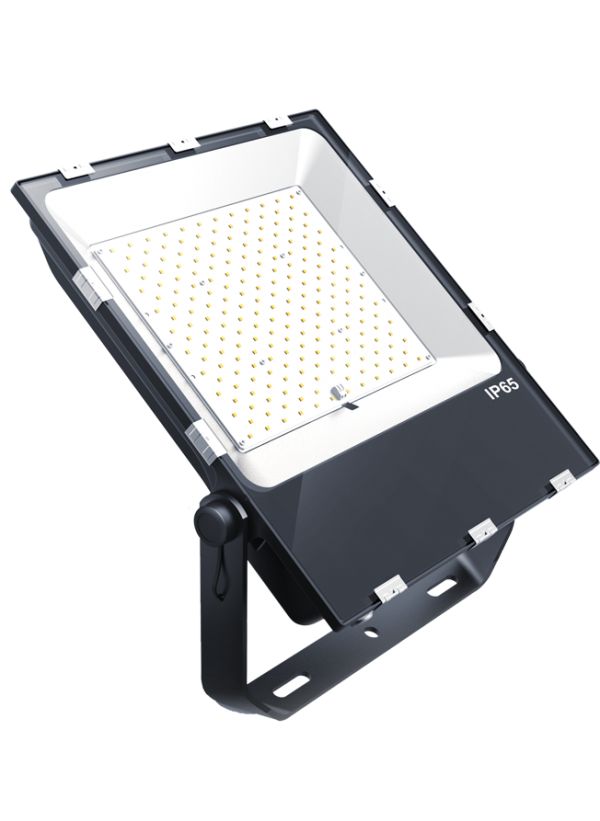

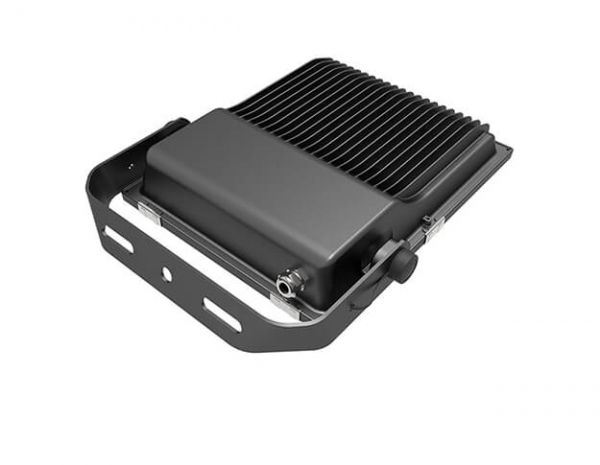

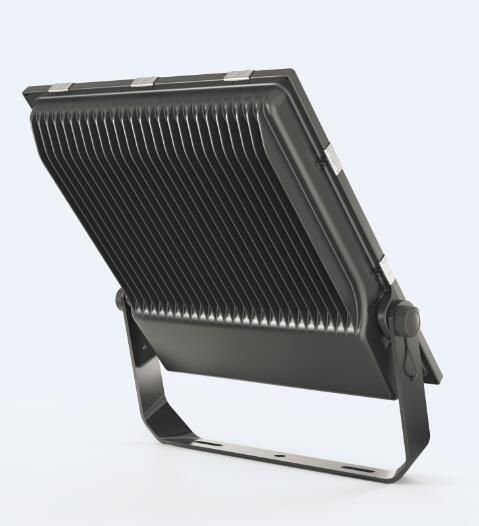

◆ Ultra-thin SMD3030 LED flood light
◆ Appearance Ultra-thin design, fashion classic
◆ Innovative G-type buckle technology, without screws, easy to install
◆ Offer IES , 5 years warranty, OEM / free laser logo
Parameters
| Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
| VAFL10W-C | 10W | AC100-277V 50/60Hz | 2700- 6500K | 1200lm | Lumileds 3030 Ra＞80 | 110° |
| VAFL20W-C | 20W | 2400lm | ||||
| VAFL30W-C | 30W | 3600lm | ||||
| VAFL50W-C | 50W | 6000lm | 110°/60°/25° | |||
| VAFL80W-C | 80W | 9600lm | ||||
| VAFL100W-C | 100W | 12000lm | ||||
| VAFL150W-C | 150W | 18000lm | ||||
| VAFL200W-C | 200W | 24000lm |
Unique Points
◆ CE, ROSH Ultra-thin SMD3030 LED Flood light
◆ Appearance Ultra-thin design, fashion classic
◆ Innovative G-type buckle technology, without screws, easy to install
◆ Widely be used in Inside and outside, such as parks, sculpture, billboard
◆ Offer IES , 5 years warranty, OEM/ Free laser logo

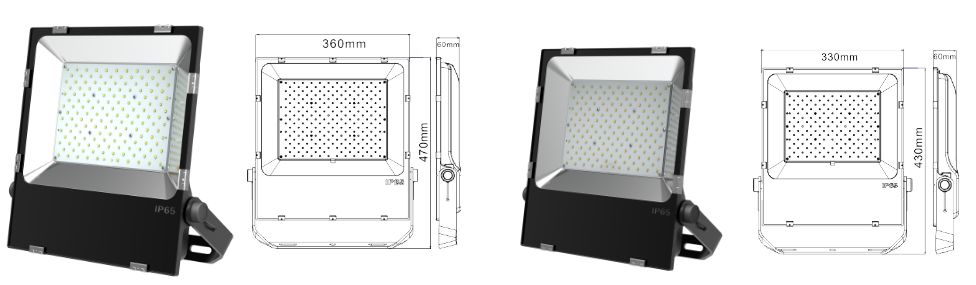

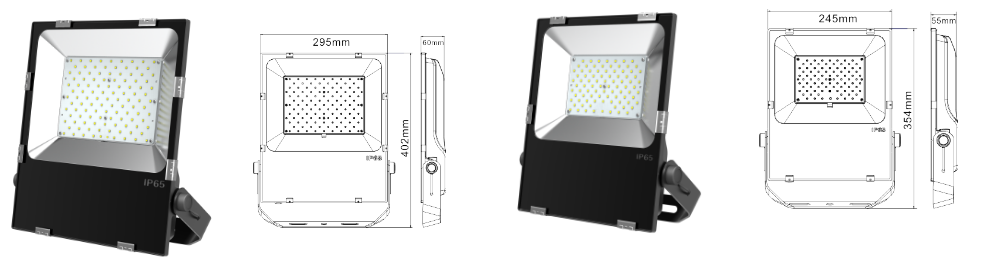

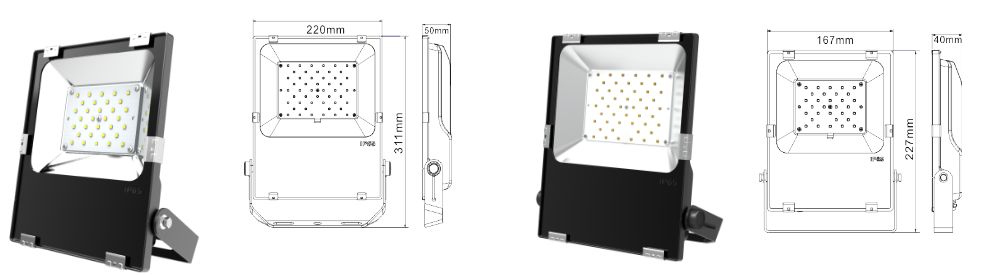

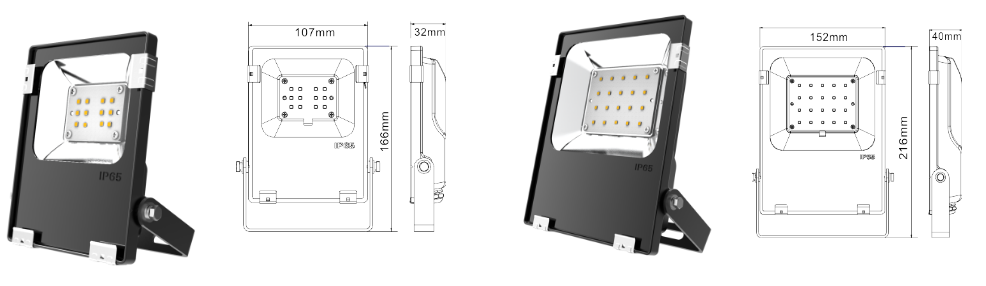

Mechanical Dimension (Unit: mm)
VAFL10W-C VAFL20W-C
VAFL50W-C VAFL30W-C
VAFL100W-C VAFL80W-C
VAFL200W-C VAFL150W-C

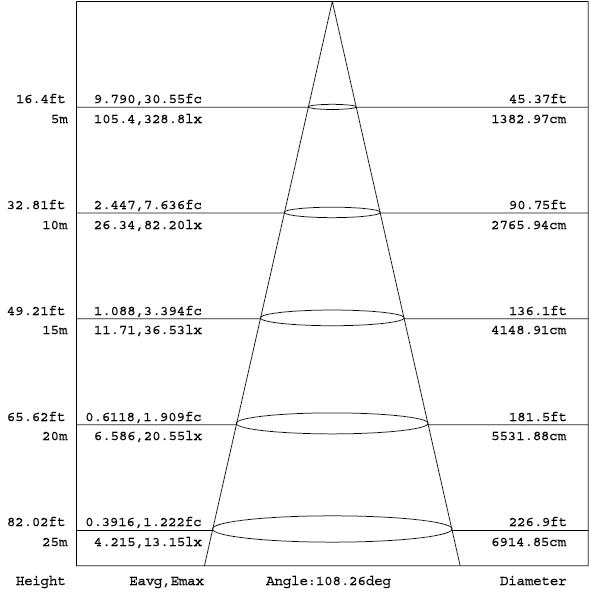

Optical Parameter

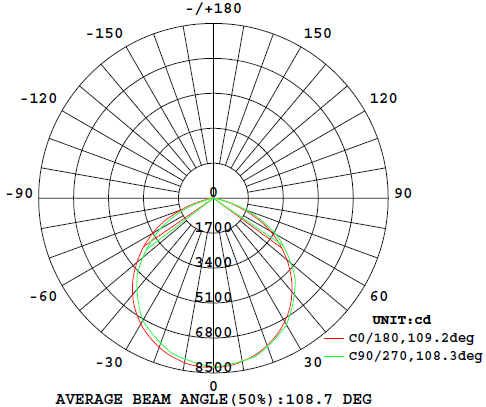

Luminous Intensity Distribution Curve

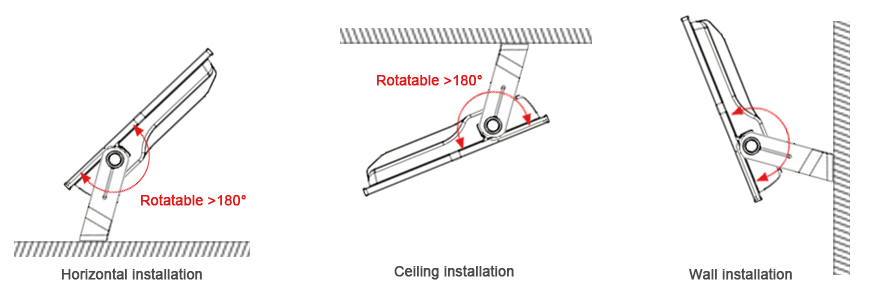

Installation Way

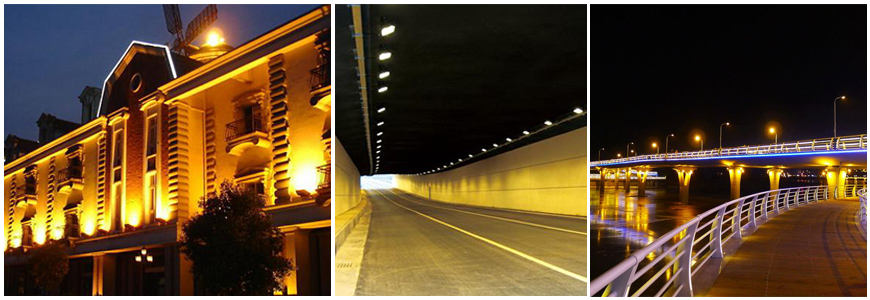

Applications
Suitable for gardens, yards, villas, parks, billboards, rooftops, gymnasiums, buildings, roads, streets, squares, factories etc.
