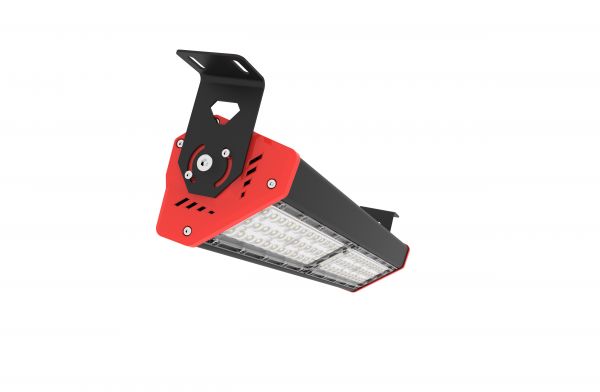

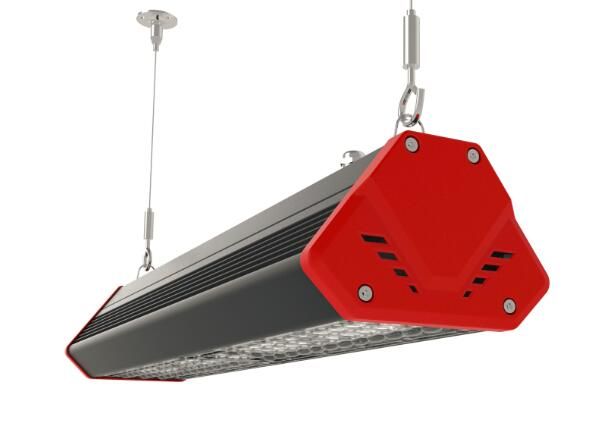

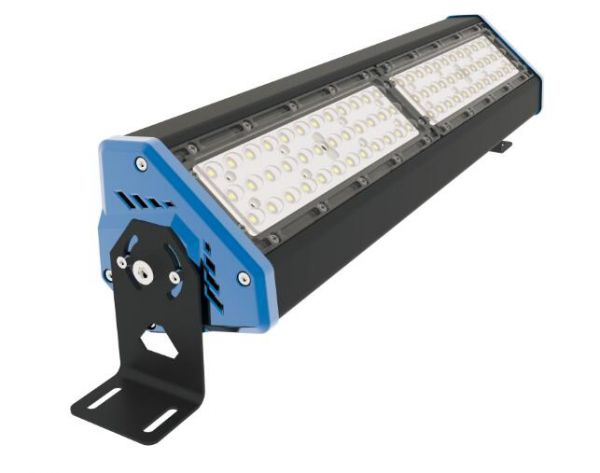

LED LINEAR HIGH BAY LIGHT - L SERIES

LED LINEAR HIGH BAY LIGHT - L SERIES

50W/100W/150W/200W

◆ High purity profiled aluminum, with excellent heat dissipation

◆ DIY the power freely to your demands

◆ Various optical lens 30°/ 60° / 90°/ 30°x70°/ 80°x150° for your choice

◆ Dimmable: 0-10VAC/PMW

  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±10%

    LEDs typeBeam Angle
    VALHBL50W-L50W

    AC100-277V

    50/60Hz

    2700-

    6500K

    6000lm

    Lumileds

    SMD 3030

    Ra80

    30°/ 60°/

    90°/30°x70°/

    80°x150°

    VALHBL100W-L100W12000lm
    VALHBL150W-L150W18000lm
    VALHBL200W-L200W24000lm




    Unique Points



    ◆ High purity profiled aluminum, with excellent heat dissipation

    ◆ Minimalist-inspired design, exquisite and generous

    ◆ DIY the power freely to your demands

    ◆ Various optical lens 30°/ 60° / 90°/ 30°x70°/ 80°x150° for your choice to meet the need of different places

    ◆ Dimmable: 0-10VAC/PMW







    Product Features



    1. High purity 6063 aluminum, with excellent heat dissipation
    2. High temperature series optional, applicable to special environment in temperature no more than 60ºC.
    3. Adopt Lumileds LED of high lighting effect and Meanwell/Sosen driver
    4. CRI>80, good color rendering performance.
    5. Red/yellow/black/Blue color end cap are available

    6. Strong corrosion resistance with painted housing

    7. Can operate in -35ºC~+45ºC environment.

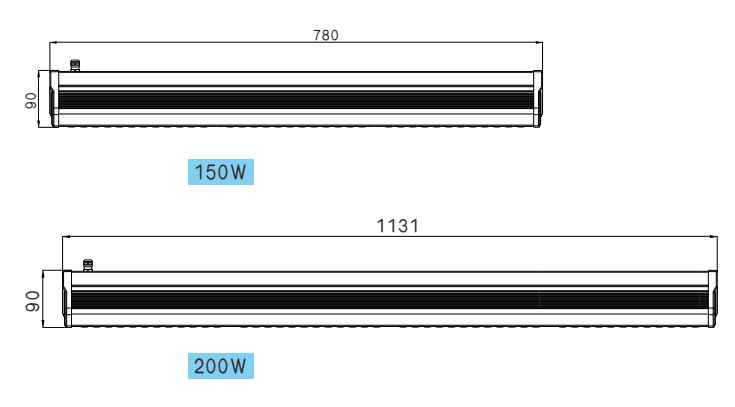

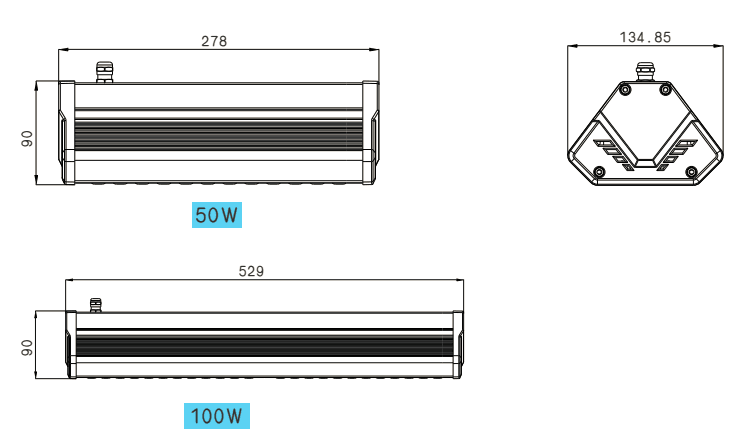

    Mechanical Dimension (Unit: mm)




    Accessories for DIY Power


    5eae703ed1843.png  5eae703e3361e.png

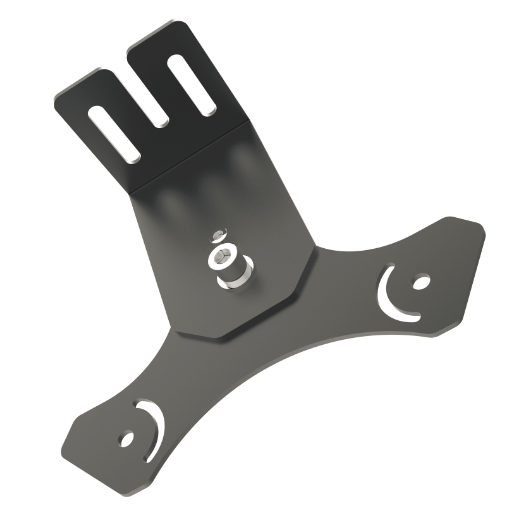

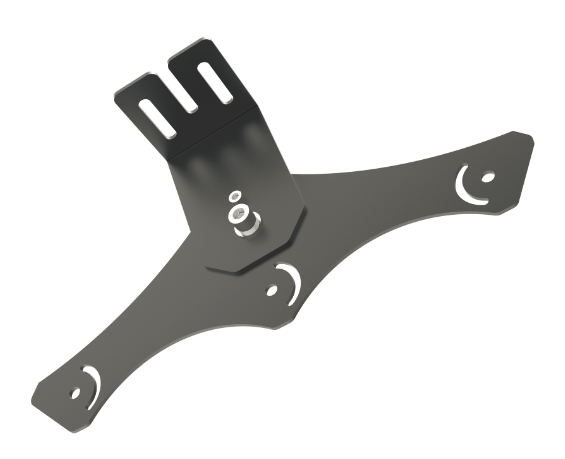

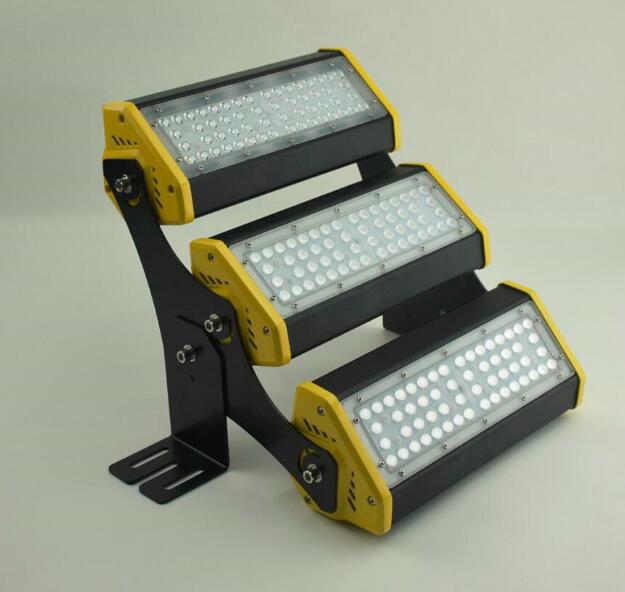

    2-lamp connector                                                         3-lamp connector


    5eae7040766cd.png  5eae704052913.jpg

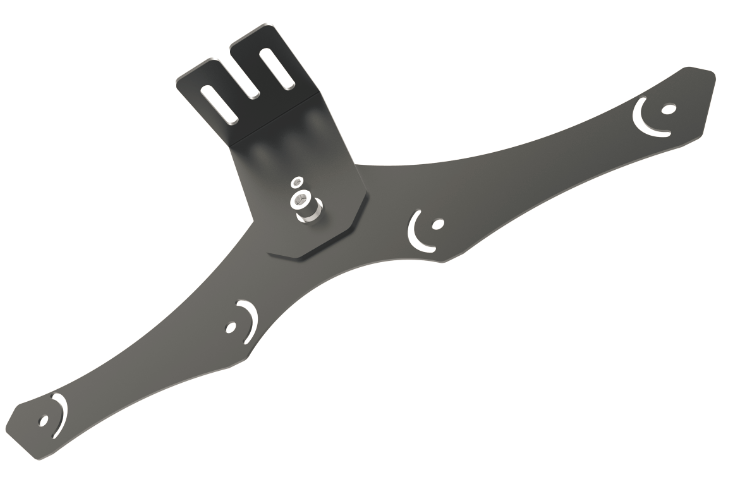

    4-lamp connector

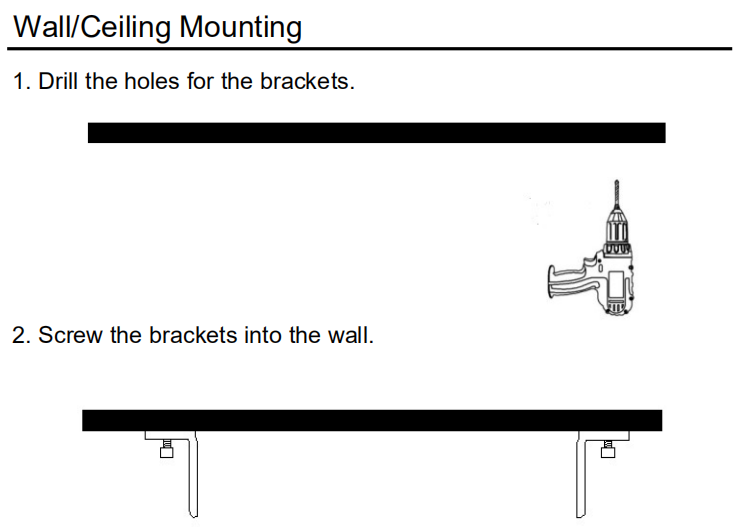

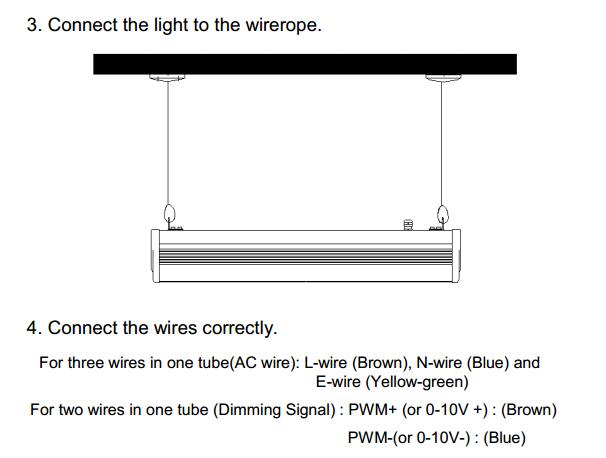

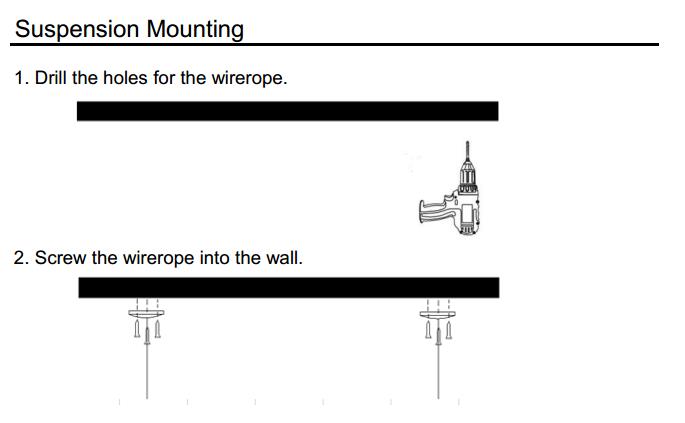

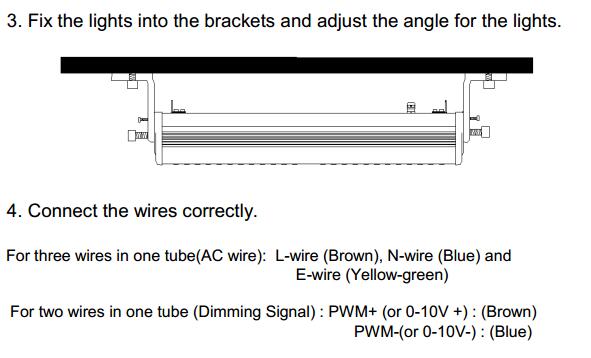

    Installation Instruction

    Warning:

    Switch off the power supply before the installation and let the electrician or the person who has the same ability to install the light.

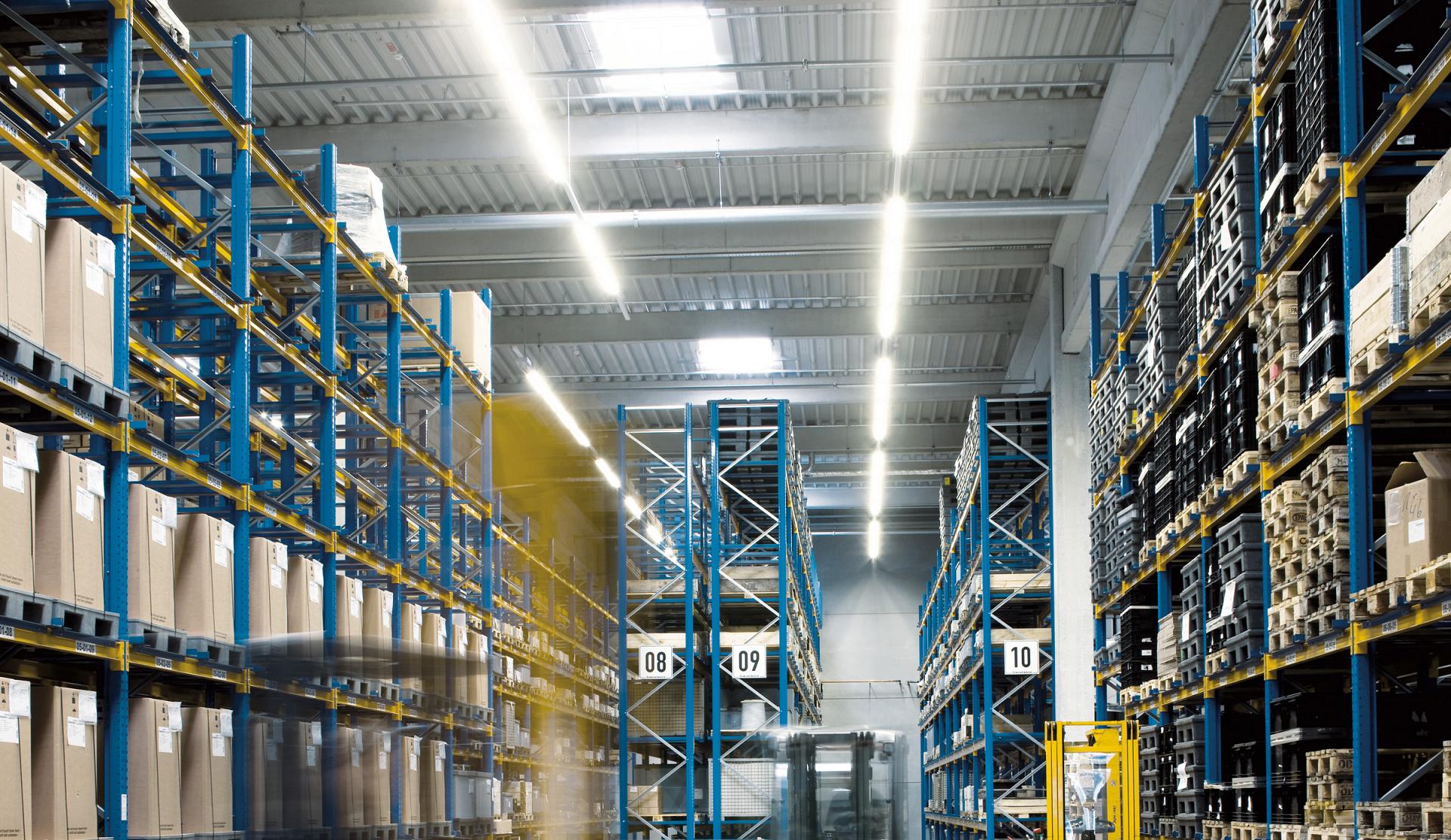

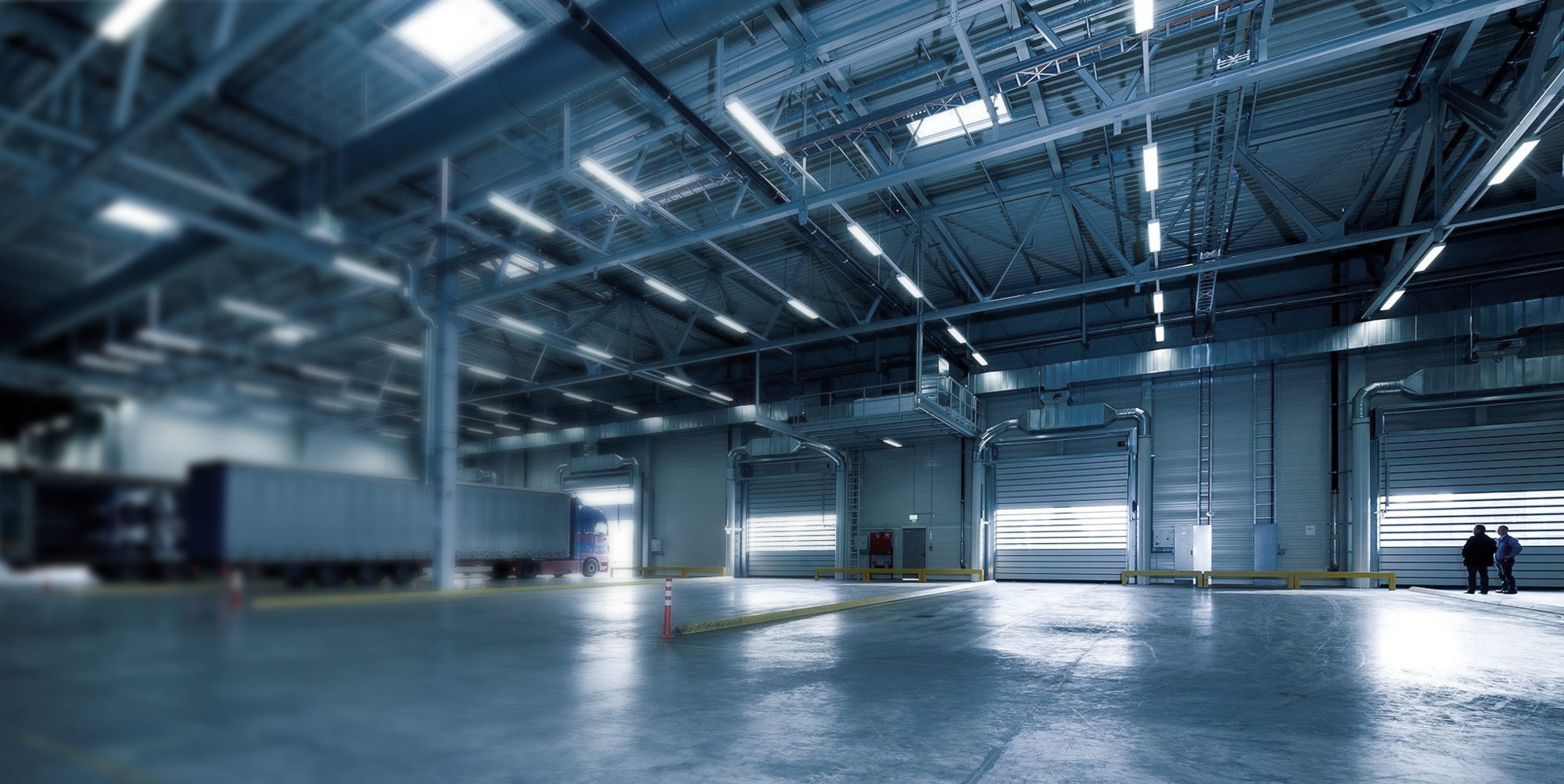

    Applications


    High shed plant, workshop, warehouse, logistics center, exhibition hall, stadium, ship building, highway statation, supermarket, parking lot.


    5eae7392ee5d1.jpg  5eae7398e5467.jpg
