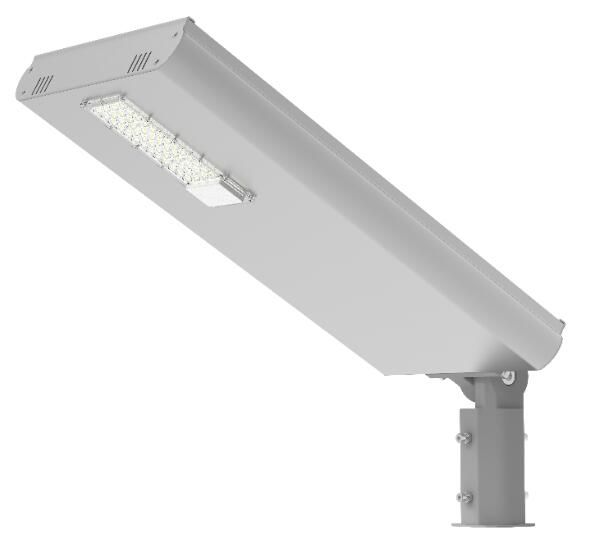

Integrated Solar Street Light

10W/30W/35W/40W/90W/120W

◆  Integrated design solution, novel appearance and easy for installation

  High-efficiency monocrystalline silicon PV panel

◆  Power-grade battery pack with lithium iron phosphate is of safety and stability

◆  Integrated light control, time control, dual control

◆  Offer IES , 3 years warranty



  • Parameters


    Model
    PV Panel Power

    PV Panel Type

    Battery

    Lumens

    ±10%

    LEDs TypeRecommended Installation Height
    VASL10W-01210W

    Mono crystalline

    LifePo4

    3.2V 4Wh

    1,200lm

    SMD 2835

    3~4M

    VASL30W-02030W

    LifePo4

    3.2V 160Wh

    2,000lmSMD 30304~6M
    VASL35W-030350W

    LifePo4

    3.2V 192Wh

    3,000lmSMD 30304~7M
    VASL40W-04040W

    LifePo4

    3.2V 230Wh

    4,000lmSMD 30304~7M
    VASL90W-05090W

    LifePo4

    3.2V 432Wh

    5,000lmSMD 50506~8M
    VASL90W-06090W

    LifePo4

    3.2V 512Wh

    6,000lmSMD 50506~8M
    VASL120W-080120W

    LifePo4

    3.2V 768Wh

    8,000lmSMD 50507~10M
    VASL120W-100120W

    LifePo4

    3.2V 1150Wh

    10,000lmSMD 50507~10M



    Unique Points



    ◆  Integrated design solution, novel appearance and easy for installation

      High-efficiency monocrystalline silicon PV panel

    ◆  Power-grade battery pack with lithium iron phosphate is of safety and stability

    ◆  Integrated light control, time control, dual control

    ◆  Intelligent control, large-capacity PV panel and battery configuration can ensure normal lighting in 3 rainy days

    ◆   IP65 protection, can be used under the environment of 0℃ ~ +60℃

    ◆  Offer IES , 3 years warranty

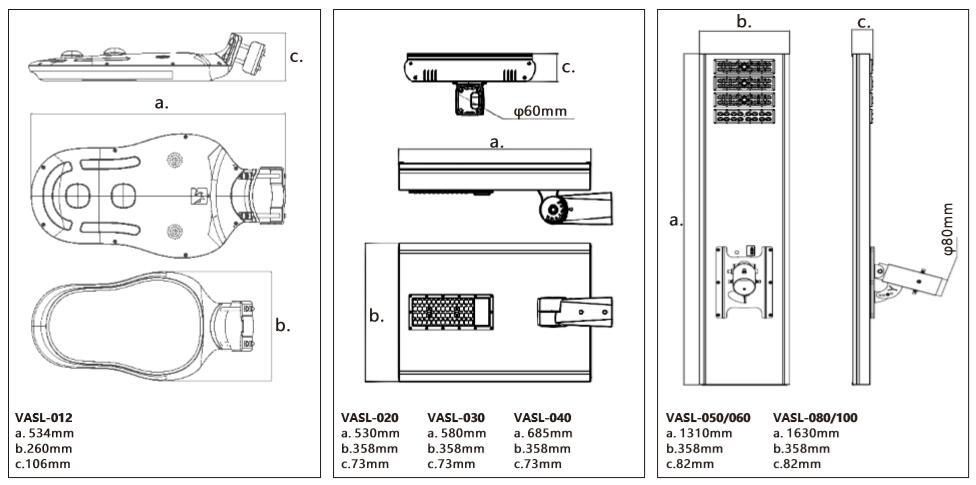

    Mechanical Dimension (Unit: mm)


    product dimmension.jpg

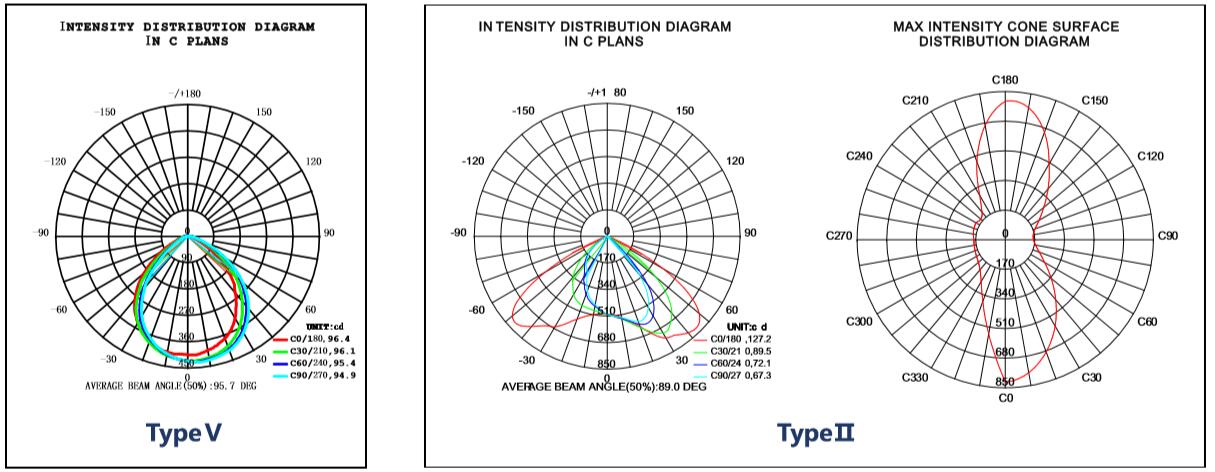

     Optical Parameter

                                             Luminous Intensity Distribution curve

    distribution diagram.jpg

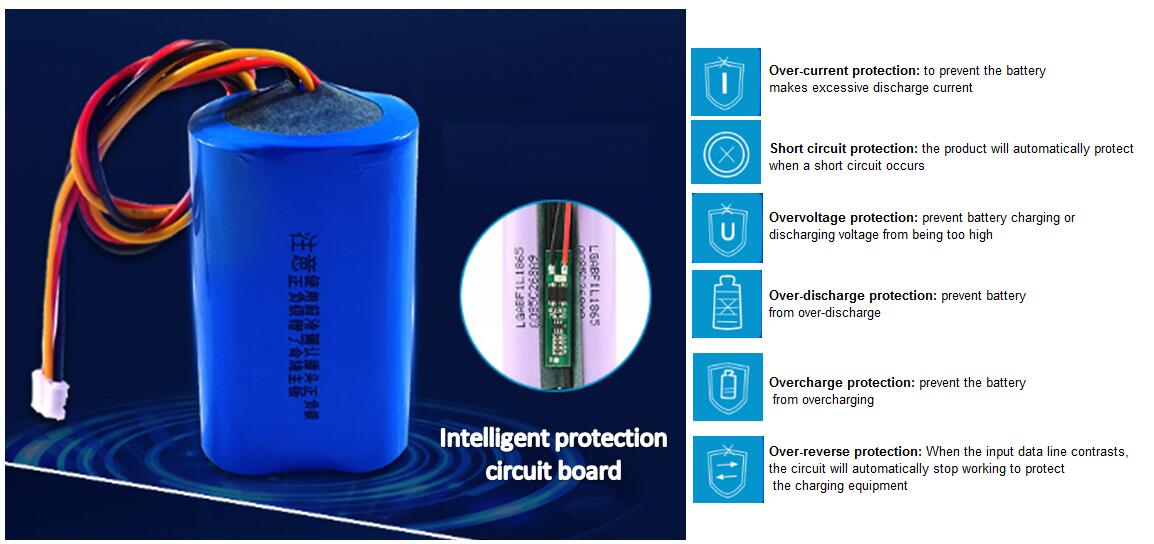

    Introduction of the Battery

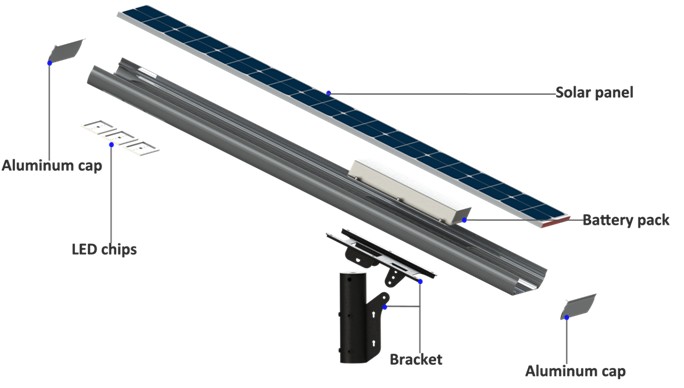

    Parts of the Lamp


    Advantages

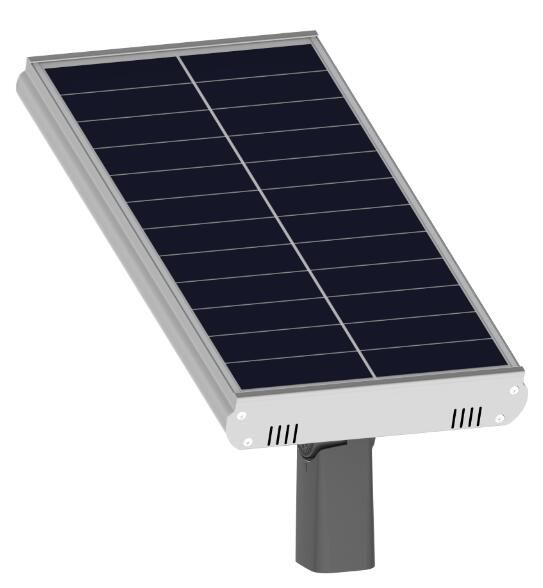

    5f7d38bcae989.jpg       5f7c3a8f912c6.jpg

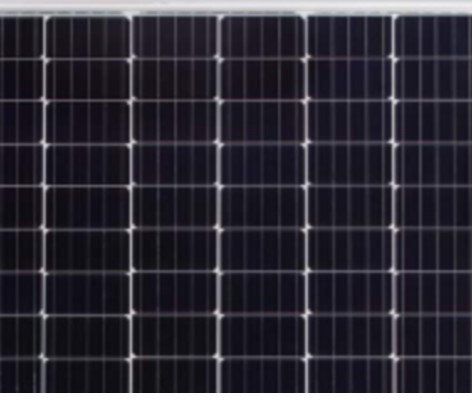

    1. High-efficiency     Use high-efficiency monocrystalline silicon PV panel, the conversion efficiency is as high as 17% or more, and the 10-year life attenuation is <10%.

    2. Reliability     The back plate adopts TPE, single side contains fluorine, weather resistance, acid and alkali resistance.

    3. Safty      Built-in lithium iron phosphate power-grade battery packs are of safety and stability.

    4. Replace     With aluminum alloy frame, easy to disassemble and replace

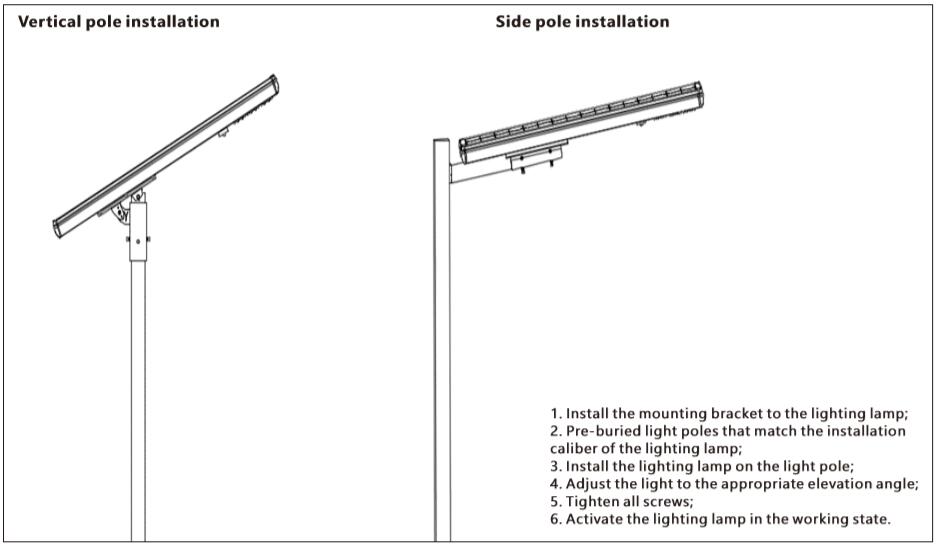

    Installation

    product installation.jpg

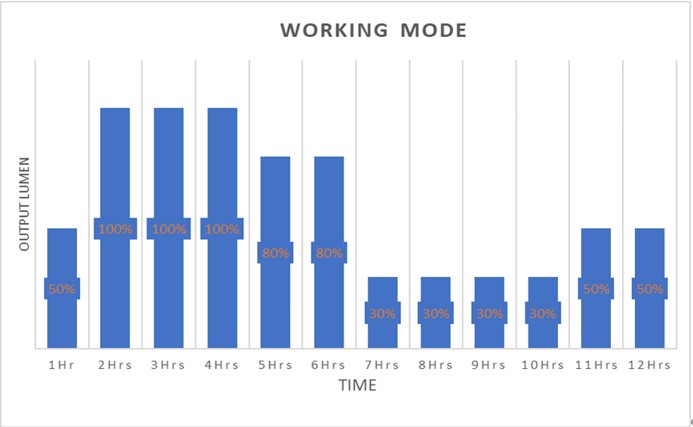

    Working Mode

    working mode.jpg

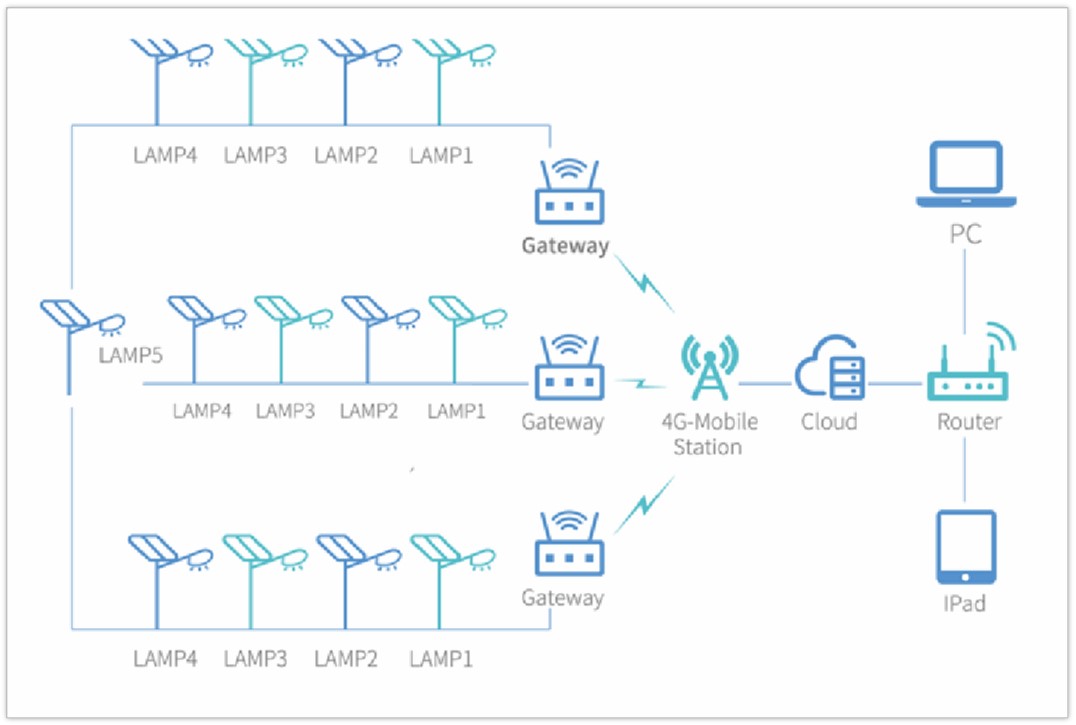

    Internet of Things Control System

    control system.jpg

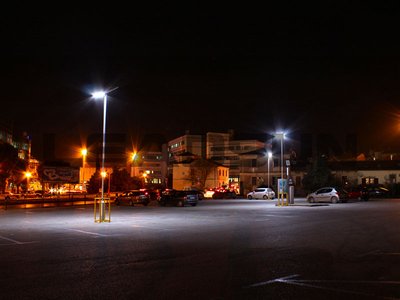

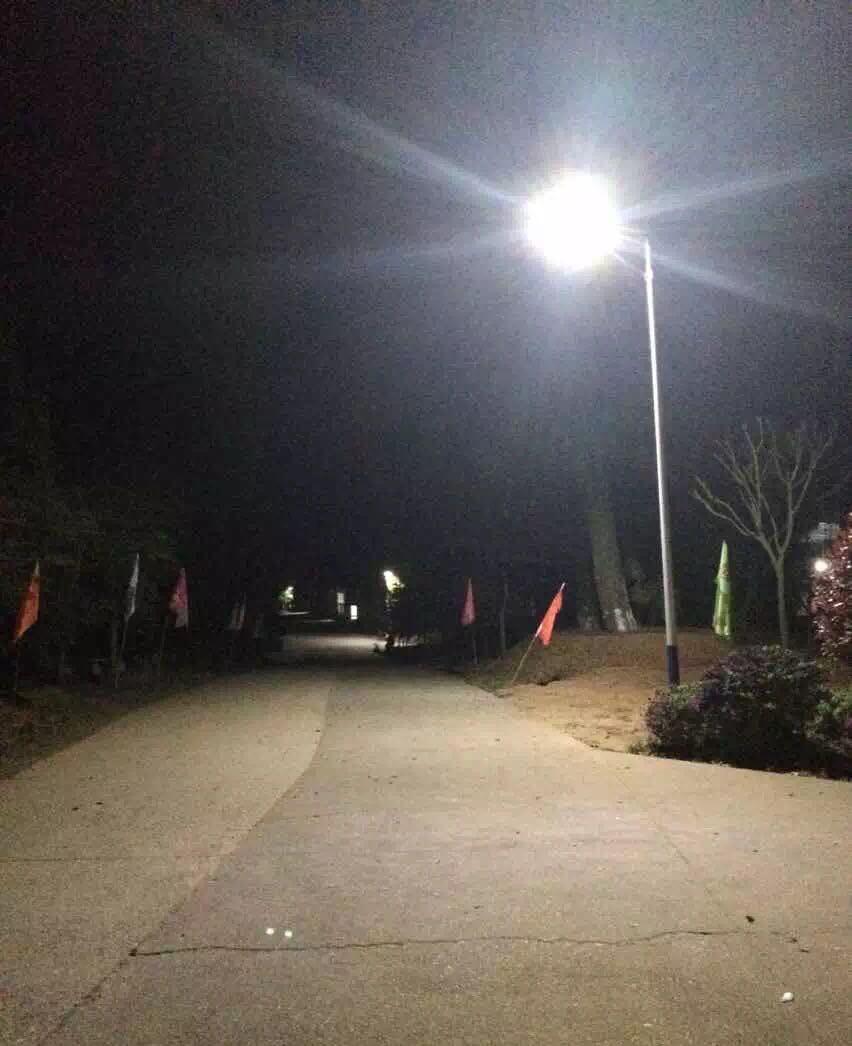

    Applications



    Suitable for roads, sidewalks, parking lots, factories, parks, squares, courtyards etc.
